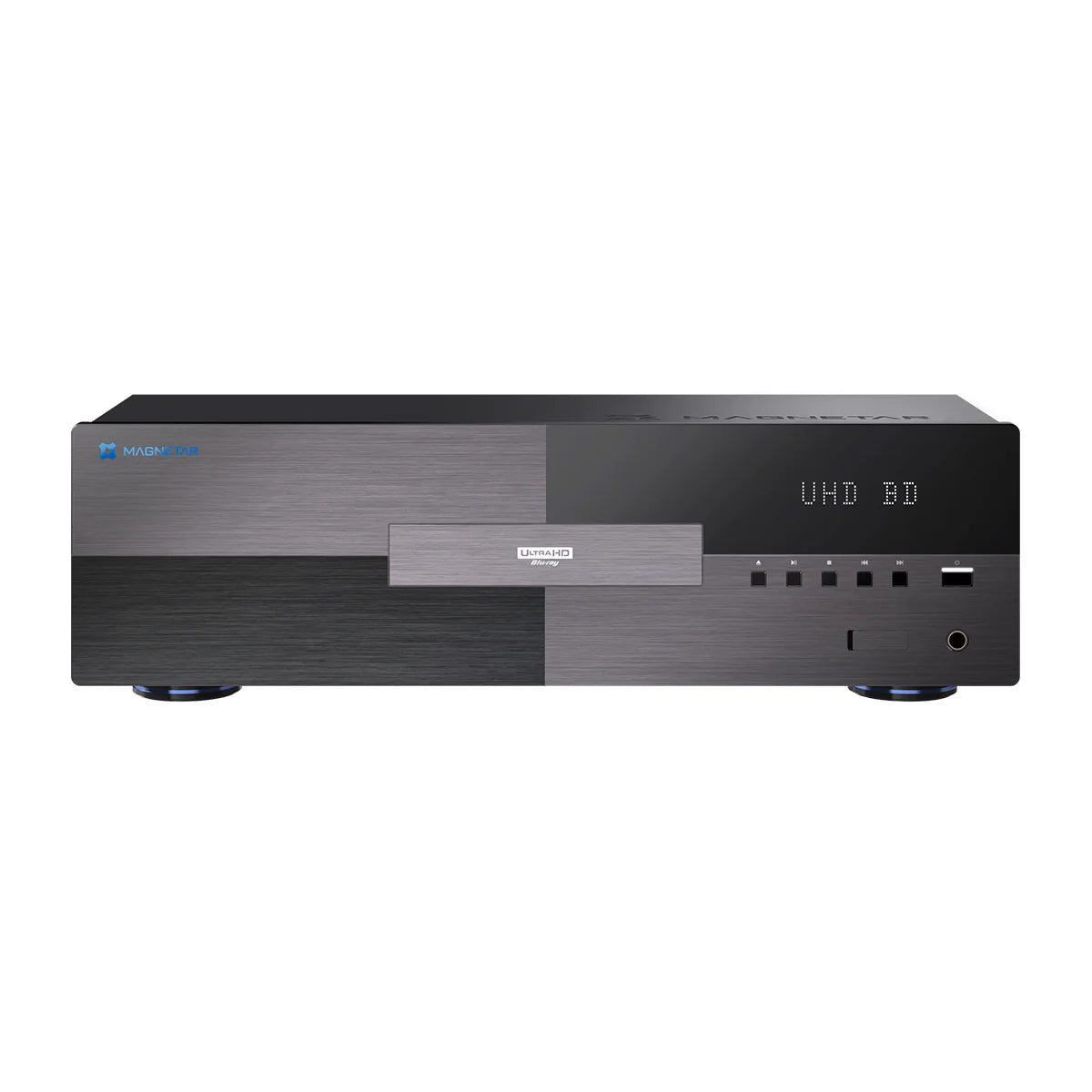

MAGNETAR UDP900 MKI 4K REFERENCE Blu-ray Ultra HD Player

Experience flagship-level home theater and Hi-Fi performance with the UDP900 MKI, a high-end universal disc player engineered for audiophile sound quality and cinema-grade 4K playback. Built around advanced multi-layer PCB design, ultra-low noise clocking, and a dual power supply architecture, the UDP900 MKI delivers cleaner video, lower noise, and higher-resolution audio—whether you’re spinning 4K UHD Blu-ray or listening to SACD and high-res files over USB and network playback.

Advanced Image & Audio Processing

The UDP900 MKI uses a 6-layer gold immersion main PCB with a high-precision, ultra-low noise TCXO temperature compensated crystal oscillator and enhanced high precision LDO power supply processing (building on the UDP800 MKI platform). Premium components—Murata multilayer ceramic capacitors, TDK magnetic devices, and 30 NCC electrolytic capacitors—help further improve overall audio and video quality.

True Audiophile Analog Output Stage

Both audio boards feature 4-layer PCB circuit boards with independent wiring per channel, plus an ultra-low phase noise TCXO clock. High-grade capacitor selection includes ELNA, NCC, Red WIMA, and ELNA SILMIC II capacitors, paired with an independent high-power linear power supply module. Outputs include Hi-Fi XLR balanced terminals and gold-plated RCA outputs for clean, dynamic, low-noise playback.

Excellent Picture + Modern HDR Support

Bring your display to life with support for:

• Dolby Vision
• HDR10+

High-End DAC Configuration

• ESS9038PRO D/A decoding for 2-channel XLR balanced and RCA unbalanced outputs
• ESS9028PRO D/A decoding for 7.1 RCA output
• Supports XMOS USB Audio input for flexible digital audio integration

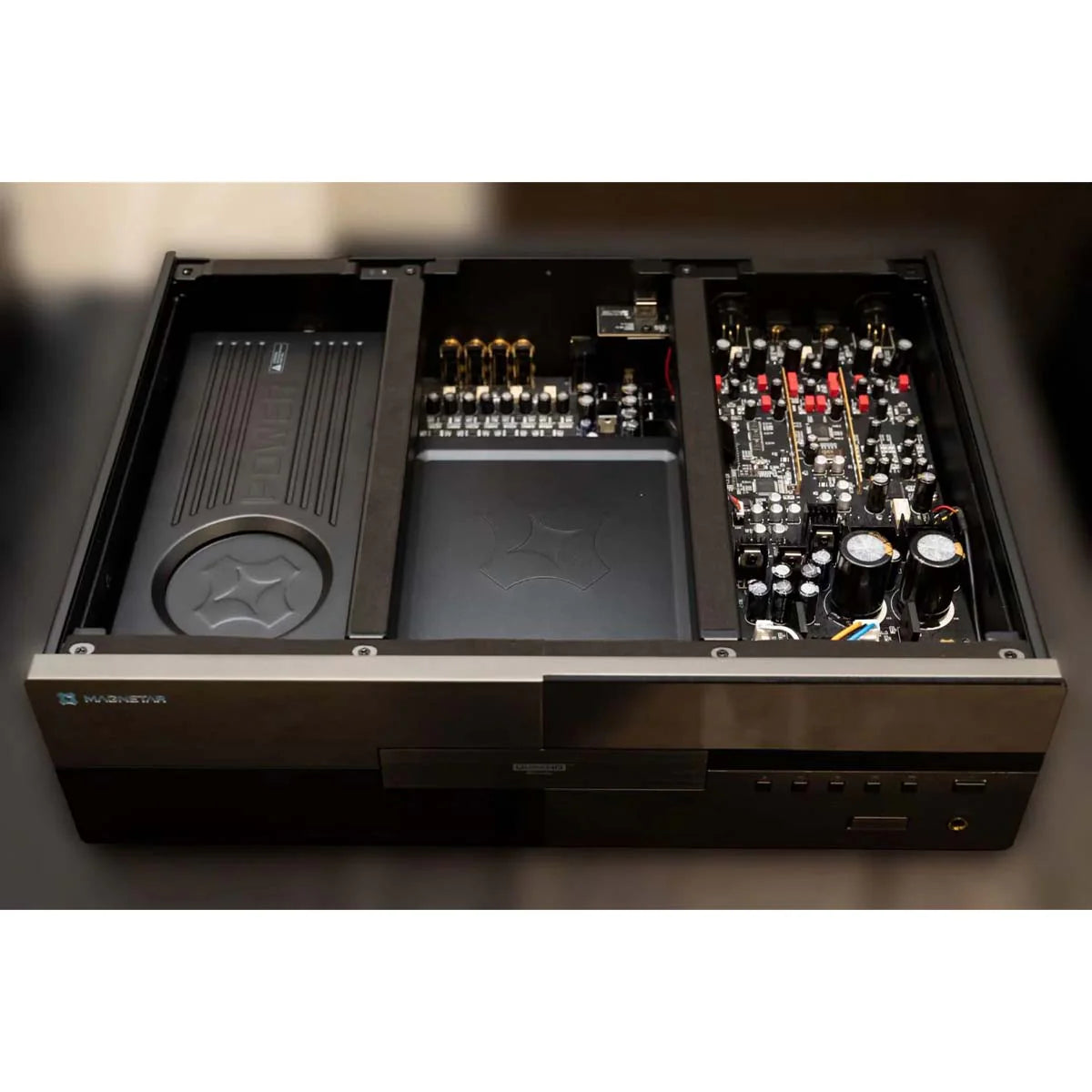

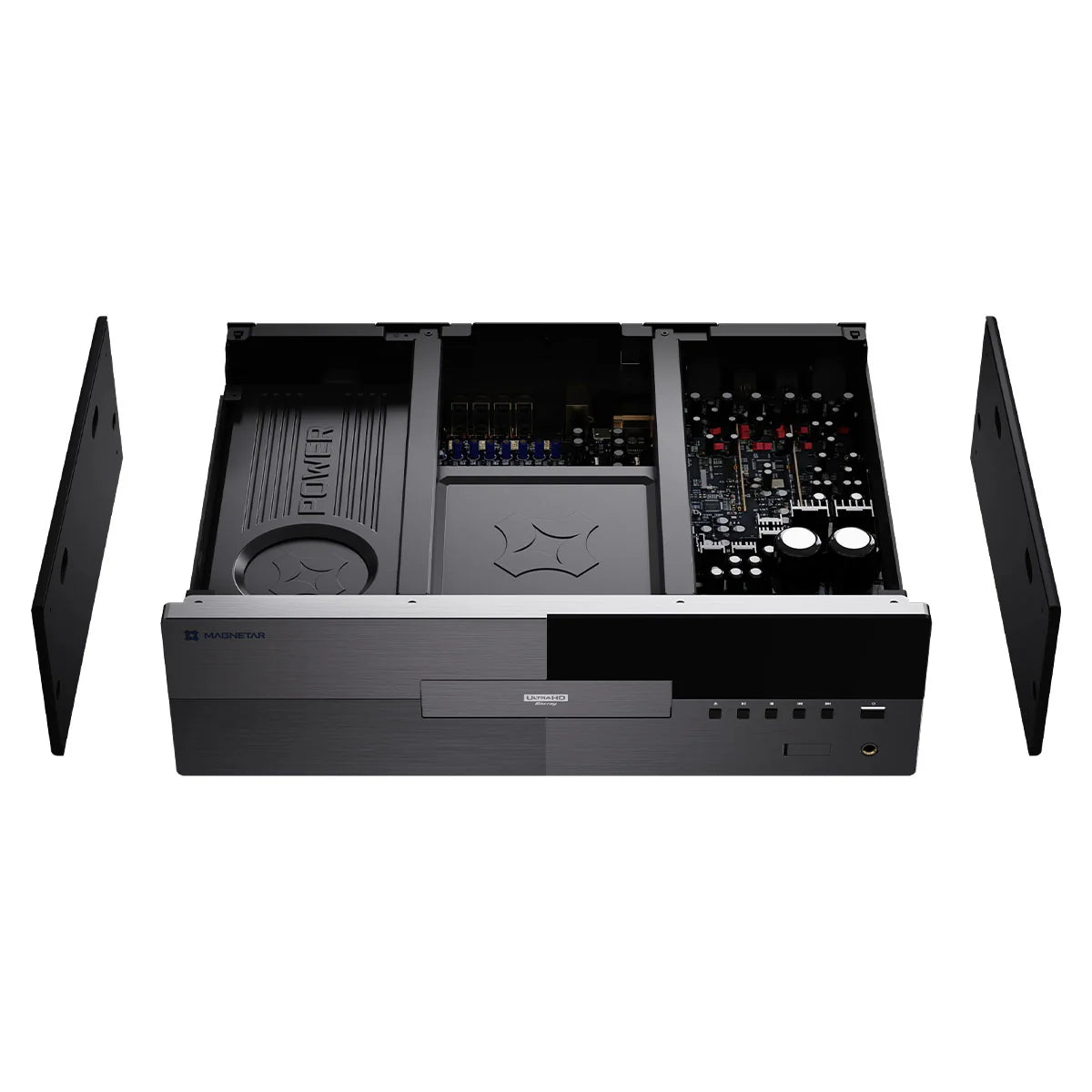

Premium Chassis Construction

The UDP900 MKI features an all-aluminum alloy body and a reinforced double-layer chassis. Key internal components are independently shielded with metal casing, helping reduce vibration, noise, and external magnetic interference—resulting in purer sound and higher-resolution video.

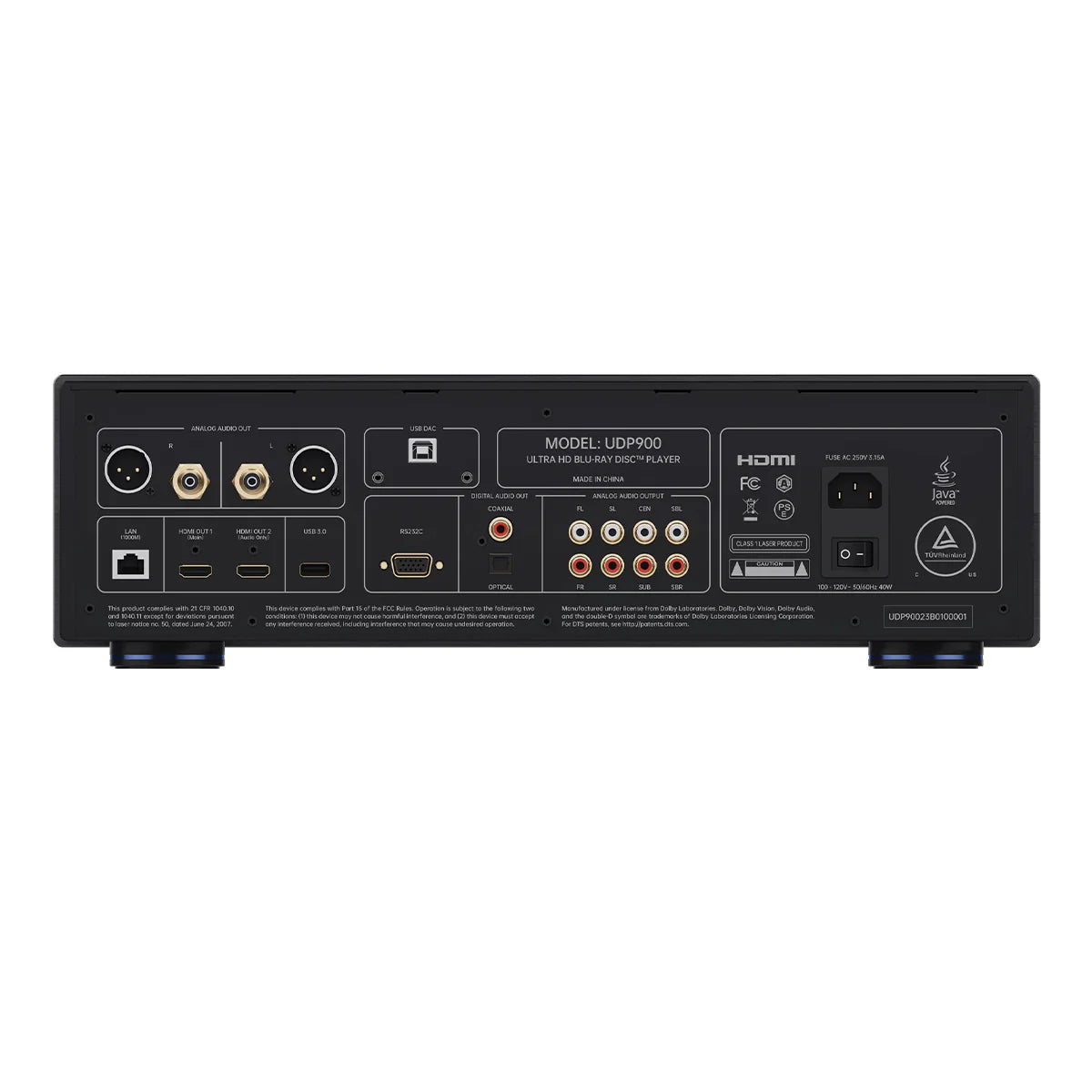

Wide Media Support + Modern Connectivity

Disc Format Compatibility

Plays a wide range of discs, including:

• 4K UHD Blu-ray, Blu-ray, Blu-ray 3D
• BD-R/RE
• DVD-Video, DVD-Audio
• AVCHD
• SACD
• CD, CD-R/RW
• Kodak Picture CD
• DVD±R/RW, DVD±R DL

File & Network Playback

• USB 3.0 playback with support for up to 16TB hard drives
• Network streaming/sharing via DLNA, SMB, NFS
• Supports popular media formats including MKV, AVI, MP4, WAV, FLAC, APE, DSD and more

Dual Power Supply Design

Designed for stability and low noise:

• Customized high-power switching power supply for the digital main board (high transient response)
• 60W high-power low-noise transformer with two-stage filtering and Japanese Rubycon electrolytic capacitors for demanding surround and high-res playback
• A separate metal case dampens noise for added quietness and stability
• 60W toroidal transformer powers analog audio, using imported magnetic core, oxygen-free copper wiring, metal shielding, and epoxy filling to reduce vibration noise and heat—improving output quality

Details & Specs

• Model: UDP900 MKI
• Analog Audio Outputs: 7.1 Channel RCA, 2-Channel RCA, Balanced XLR
• Digital Audio Outputs: Optical, Coaxial, HDMI
• HDMI Audio: Up to 7.1 Channel 192kHz PCM, 5.1 Channel DSD
• HDMI Video Output: UHD 23.976/25/30/50/59.94/60Hz, 1080i/p, 720p, 576i/p, 480i/p, Source Direct
• Frequency Range:
  • Hi-Fi 2ch: 20Hz–80kHz (±0.03dB)
  • Multichannel: 20Hz–80kHz (±0.05dB)
• Signal-to-Noise Ratio: ≥120dB (2CH RCA); ≥130dB (2CH XLR)
• THD+N: ≤0.0005%
• Output Amplitude: (RCA) 2.1±0.2Vrms; (XLR) 4.2±0.4Vrms
• Dynamic Range: ≥120dB (2CH RCA); ≥130dB (2CH XLR)
• Channel Resolution: ≥110dB (2CH RCA); ≥140dB (2CH XLR)
• Power Supply: AC 110–120V 50/60Hz or AC 220–240V 50/60Hz
• Power Consumption: <40W, Standby <0.5W
• Operating Temp: 5°C–35°C (41°F–95°F)
• Operating Humidity: 5%–75%
• Unit Dimensions: 445 × 321 × 133 mm
• Unit Weight: 5.4 kg
• Packing Dimensions: 550 × 470 × 265 mm
• Packing Gross Weight: 18.9 kg
